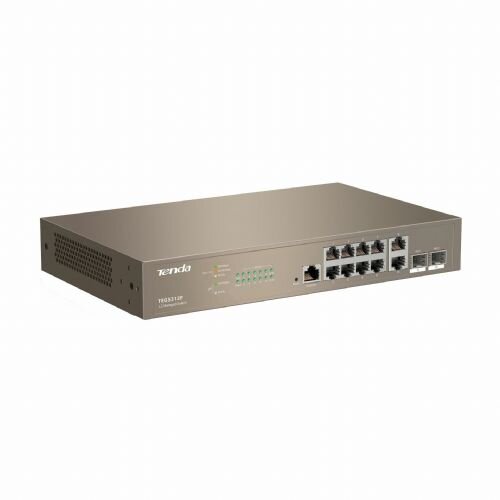

Tenda TEG5312F L3 Managed Switch LAN02836 cene

Layer3 Routing EngineHighEfficiency Fast Forwarding
Supports Layer 3 static routing protocols supports Layer 3 forwarding of up to 400+ terminals easily meets Layer 3 routing and forwarding across network segments and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission there is no need to go through a router and the forwarding speed is faster!
Map Visualization
It supports auto discovery of ONVIF based IP camera and access point and also supports automatically topology generate.
Flexible QoS Precise Traffic Control
The TEG5312F supports three QoS scheduling modes (SP SWRR WRR) for more accurate traffic control. After the QoS function is enabled the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidthin order to better meet the current transmission needs.
Supports Layer 2 And Layer 3 ACLFor More Secure Access
Support strict access control based on MAC address or IP address which can filter the corresponding data packets to enhance user network security. It can be used for network deployment of government medical and other units.
Network standards
IEEE802.3? IEEE802.3u? IEEE802.3ab? IEEE802.3ad? IEEE802.3z? IEEE802.3x?IEEE802.1p? IEEE802.1q? IEEE802.1w? IEEE802.1d? IEEE802.1s
LED indicators:
1*Link/Act LED indicator
1*Power LED indicator
1*SYS LED indicator
Interfaces:
10*10/100/1000 BaseT Ethernet ports
2*1000 BaseX SFP ports
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity N/A
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: 10kV
Contact discharge: 8kV
Forwarding mode
Storeandforward
Switch capacity 24Gbps
Packet forwarding rate 17.90Mpps
Buffer 12Mb
MAC address table 16K
Jombo frame 10K
PoE power supply N/A
PoE budget N/A
Input voltage 100240V AC 50/60Hz
Power consumption
Full load:
