Opis i karakteristike

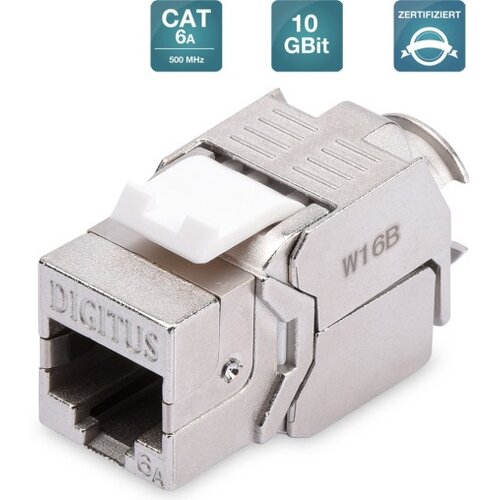

DIGITUS CAT 6A Keystone Jack, shielded,Reembedded, 500MHz acc. ISO/IEC 11801:2002 AM2:2009/09, tool free connection Technical Details: Material enclosure: Zinc diecast Nickel plated Material contacts: Phosphor bronze 360 cable screen connection for enhanced EMI protection Contacts coating: Nickel, gold plated 0,5 Operating Temperature: 10C c+60C (ISO/IEC 11801,ANSI/TIA/EIA 568 B.2) Material PCB: FR4, UL 94V0, multilayer 1,45mm thickness Mating cycles: 750 (ISO/IEC 11801, IEC 6060375) Diameter CuConductor: AWG (26/1 23), stranded and solid RJ 45 jack, female, for patch panel installation Compact form allows an installation of 24 x in 483mm (19) 1U blank Panel Suitable for bracket typ DN91410, DN91411, DN91412 Opening size acc. Keystone Standard 19.35 mm x 14.8 mm Tool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B Suitable for design wall plates for several wellknown switching programs e.g. BuschJaeger part number: 1812 or 1866EB Suitable for design wall plates for switching program PEHA part number: D 600 MJ8 Suitable for design wall plates for switching program FELLER (CH) EDIZIOdue part number e.g.: 1183028.FMI.F.61 Fits easily in wall and floor boxes, patch panels, desk boxes through short depth Dimensions (HxWxD): 20,14,34 mm
