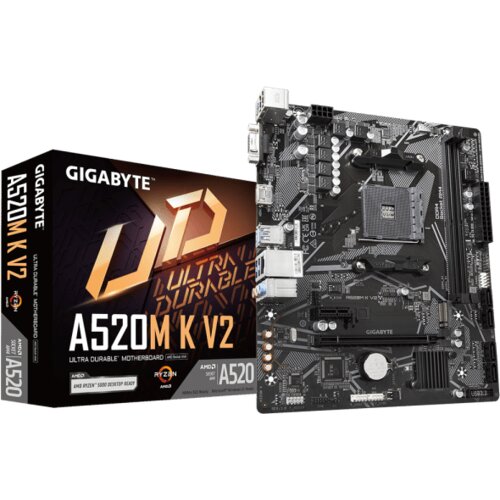

Mb AMD AM4 Gigabyte A520M K V2 cene

Model Gigabyte A520M K V2 Matična ploča DDR4 AM4 Micro ATX Procesorsko podnožje (Socket) AMD Socket AM4 Skup čipova (Chipset) AMD A520 Podrška za procesore AMD Socket AM4, support for: AMD Ryzen 5000 GSeries Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 GSeries Processors/ AMD Ryzen 3000 Series Processors Tip memorije (RAM) DDR4 Broj memorijskih slotova 2x 288Pin DDR4 Podrška za memorije 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Unbuffered DIMM 1Rx8/2Rx8 memory modules (operate in nonECC mode) Support for nonECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Podrška za grafiku portovi Integrated Graphics Processor: 1 x DSub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Maximum shared memory of 16 GB Slotovi za proširenja CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 M.2 portovi 1x M.2 Socket 3 Čuvanje podataka portovi CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 U.2 portovi nema SATA Express portovi nema SATA portovi 4x SATA 6Gb/s LAN Realtek GbE LAN chip (1 Gbps/100 Mbps) Zvuk (Audio) Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1channel USB portovi CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Konektori na zadnjoj strani 1 x PS/2 keyboard/mouse port 1 x DSub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ45 port 3 x audio jacks Unutrašnji konektori 1 x 24pin ATX main power connector 1 x 8pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GCTPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header Posebne mogućnosti Support for APP Center @BIOS EasyTune Smart Backup System Information Viewer Support for QFlash Support for Xpress Install Operativni sistem Windows 10; Windows 11 BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Format Micro ATX
