Opis i karakteristike

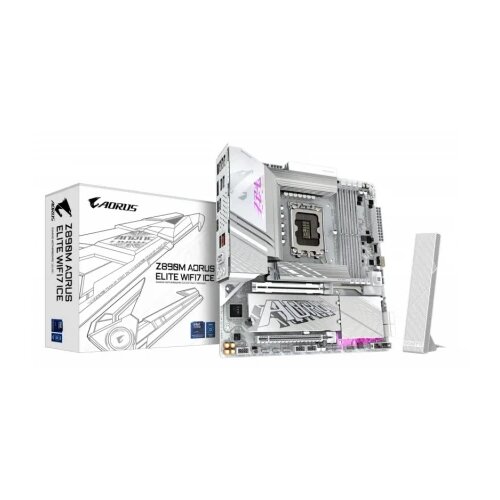

| Model | Gigabyte Z890M AORUS ELITE WIFI7 ICE DDR5 Micro ATX LGA1851 Matična ploča |
| Procesorsko podnožje (Socket) | Intel Socket 1851 |
| Skup čipova (Chipset) | Intel Z890M |
| Podrška za procesore | Support for Intel Core Ultra Processors L3 cache varies with CPU |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288Pin DDR5 |
| Podrška za memorije | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Support for DDR5 6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Unbuffered DIMM 1Rx8/2Rx8 memory modules (operate in nonECC mode) Support for nonECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
| Podrška za grafiku portovi | Integrated Graphics ProcessorIntel HD Graphics support: 1 x USB4 USB TypeC port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 144Hz Support for DisplayPort 2.1 version 1 x DisplayPort, supporting a maximum resolution of 3840x2160 144Hz Support for DisplayPort 2.1 version 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30Hz Support for HDMI 1.4 version |
| Slotovi za proširenja | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| M.2 portovi | 3x M.2 Socket 3 |
| Čuvanje podataka portovi | CPU: 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | MediaTek WiFi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands Support for 11be 160MHz wireless standard Realtek WiFi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands Support for 11be 160MHz wireless standard |
| Bluetooth | 5.4 |
| Zvuk (Audio) | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1channel Support for S/PDIF Out |
| USB portovi | CPU: 1 x USB4 USB TypeC port on the back panel Chipset: 1 x USB TypeC port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 TypeA port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Konektori na zadnjoj strani | 1 x USB4 USB TypeC port (DisplayPort(Note)) 1 x USB 3.2 Gen 2 TypeA port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ45 port 1 x optical S/PDIF Out connector 2 x audio jacks Actual support may vary by CPU. |
| Unutrašnji konektori | 1 x 24pin ATX main power connector 2 x 8pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB TypeC header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ addin card connectors 1 x Trusted Platform Module header (For the GCTPM2.0 SPI/GCTPM2.0 SPI 2.0/GCTPM2.0 SPI V2 module only) 1 x HDMI port 1 x power button 1 x reset button 1 x QFlash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Posebne mogućnosti | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Support for GIGABYTE Control Center (GCC) Support for QFlash Support for QFlash Plus Support for Smart Backup |
| Operativni sistem | Windows 11 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Micro ATX |
| Prava potrošača: | Zakonska saobraznost 2 godine |
| EAN: | 4719331865269 |
